A small tool aimed to increase the perception of architectural details in indoor and outdoor area. TAPE is a revolution of accent architectural light. A compact element with simple installation through the tightening of the hidden screws: in this way the luminaire remains intact in its unique style.
POWER TYPE
AVAILABLE CONFIGURATION
TYPES OF LIGHT EMISSION
CERTIFICATES AND REQUIREMENTS
FINISHES
01 PAINTED WHITE
04 PAINTED CORTEN
07 ANODIZED NATURAL
11 PAINTED ANTHRACITE
13 ANODIZED BLACK
58 ANODIZED BRONZE

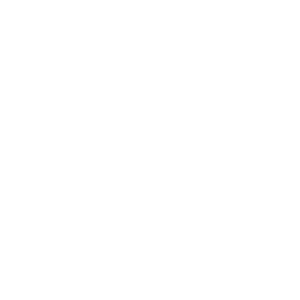

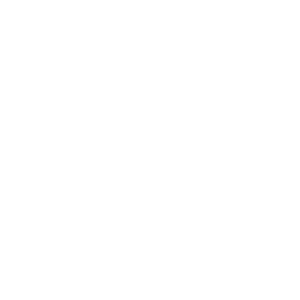

Technical drawings
Technical data
| Version | Code | Power | Protection IP | Lumen 2700K  | Lumen 3000K  | Lumen 4000K  | RGBW  | Light beam | Power supply | Download |
|---|---|---|---|---|---|---|---|---|---|---|
| TAPE RW | 02.200007 | 4W | IP 66 | 465 | 510 | 570 | - | .W1 | 24VDC | PDF LDT |
| TAPE RW | 02.200009 | 6W (4x1,5W) | IP 66 | - | - | - | 530 | .W1 | 24VDC | PDF LDT |
| TAPE SW | 02.200010 | 4W | IP 66 | 465 | 510 | 570 | - | .W1 | 24VDC | PDF LDT |
| TAPE SW | 02.200012 | 6W (4x1,5W) | IP 66 | - | - | - | 530 | .W1 | 24VDC | PDF LDT |
