Multi System

Products

DOWNLOAD DATASHEET

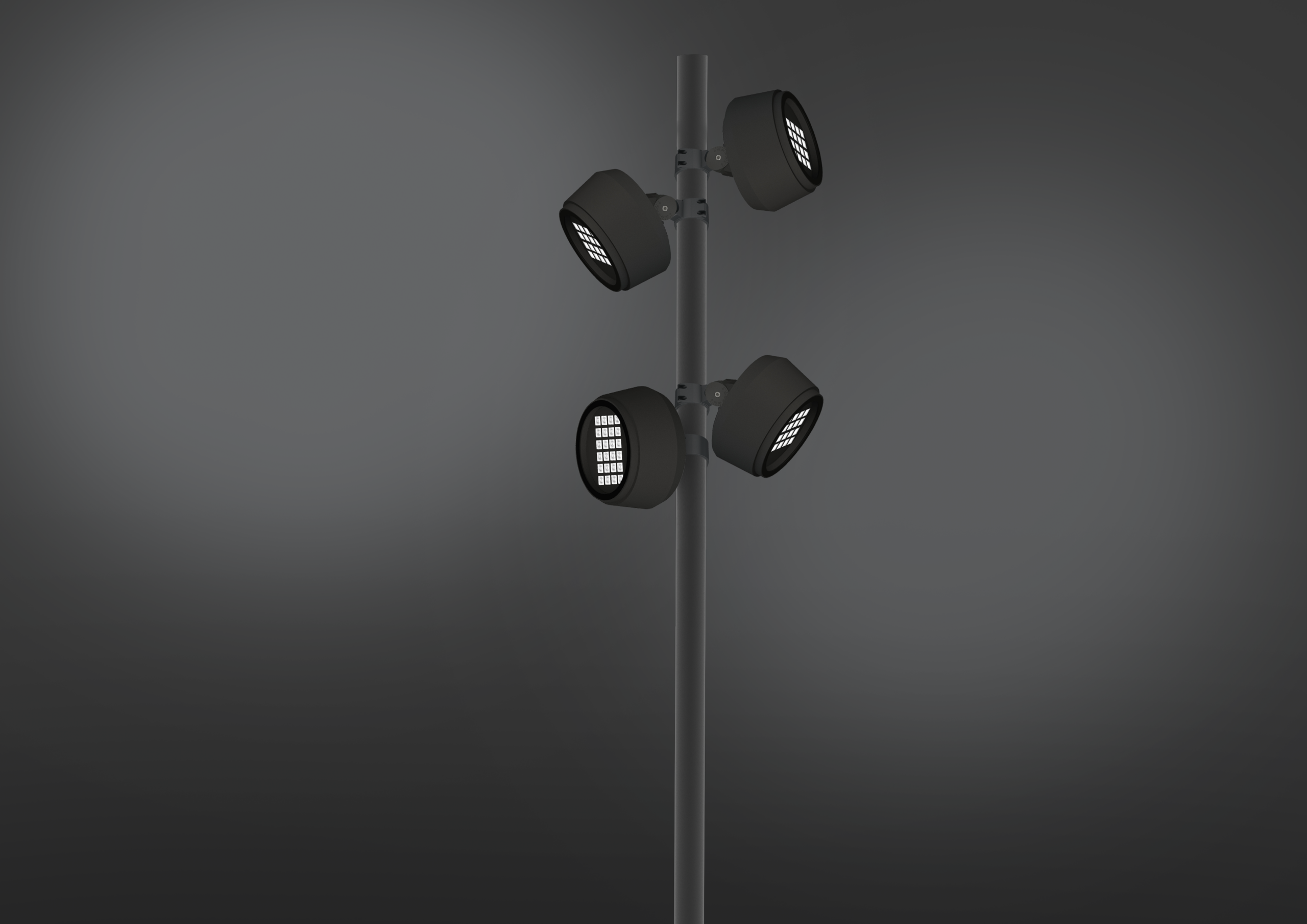

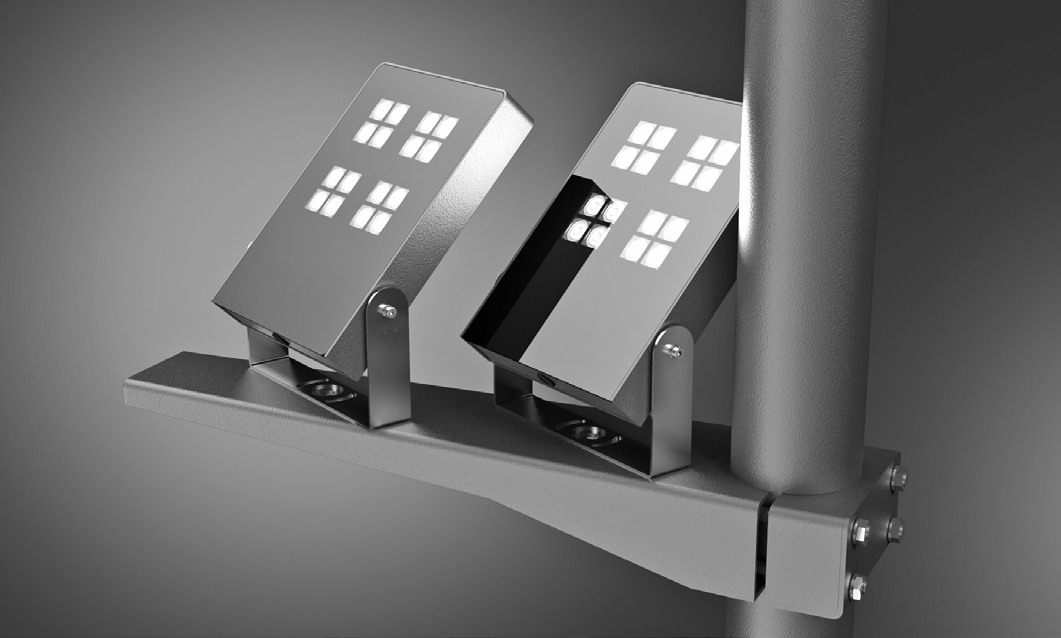

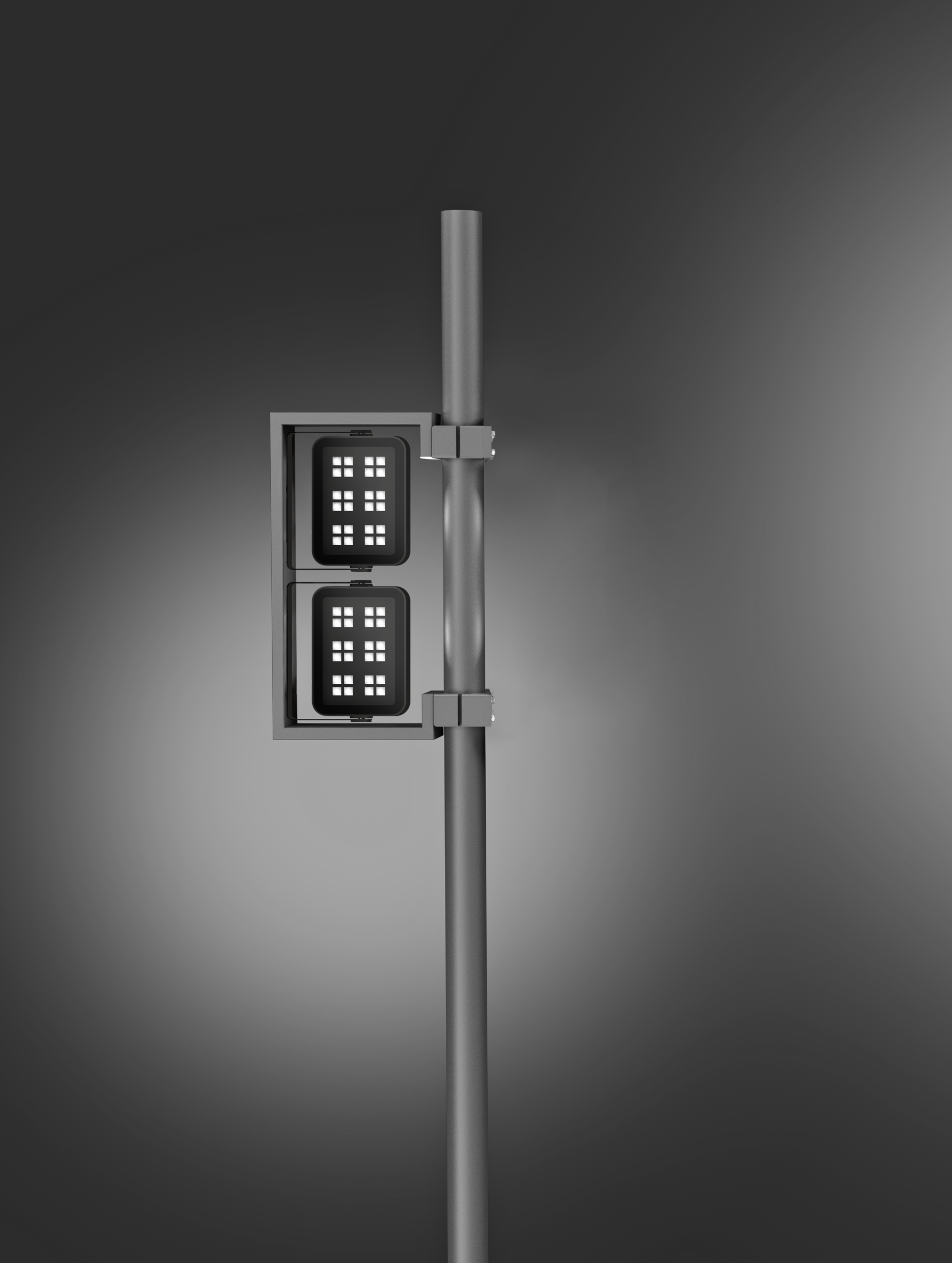

Modular system designed for the installation of FLAT EVO, ROUND EVO, BLOCK and PHAZE floodlights. All components are manufactured entirely from galvanized steel and finished with a polyester powder coating to ensure maximum resistance to atmospheric agents and long-term durability. Thanks to its modular design, MULTI SYSTEM enables the creation of multiple configurations and combinations, providing exceptional flexibility to meet the specific technical, lighting and aesthetic requirements of each project. The system allows the integration of multiple floodlights in various arrangements, offering maximum design freedom and seamless adaptation to any architectural environment.

FINISHES

01 PAINTED WHITE

02 PAINTED BLACK

03 PAINTED GREY

04 PAINTED COR-TEN

11 PAINTED ANTHRACITE

Technical data

POLE Ø102 - WITH PLATE CodeDescription HeightDownload
20.210223Cylindrical poleH4000 mmPDF
20.210224Cylindrical poleH4500 mmPDF
20.210225Cylindrical poleH5000 mmPDF
20.210226Cylindrical poleH5500 mmPDF
20.210227Cylindrical poleH6000 mmPDF
20.210243Anchor platePDF
POLE Ø102 - BURIEDCodeDescription HeightDownload
20.210228Cylindrical poleH4000 mmPDF
20.210229Cylindrical poleH4500 mmPDF
20.210230Cylindrical poleH5000 mmPDF
20.210231Cylindrical poleH5500 mmPDF
20.210232Cylindrical poleH6000 mmPDF
POLE Ø120 - WITH PLATE CodeDescription HeightDownload
20.210233Cylindrical poleH4000 mmPDF
20.210234Cylindrical poleH4500 mmPDF
20.210235Cylindrical poleH5000 mmPDF
20.210236Cylindrical poleH5500 mmPDF
20.210237Cylindrical poleH6000 mmPDF
20.210244Anchor platePDF
POLE Ø120 - BURIEDCodeDescription HeightDownload
20.210238Cylindrical poleH4000 mmPDF
20.210239Cylindrical poleH4500 mmPDF
20.210240Cylindrical poleH5000 mmPDF
20.210241Cylindrical poleH5500 mmPDF
20.210242Cylindrical poleH6000 mmPDF

Accessories

H1 - HORIZONTAL ARM CodeDescriptionSizes
20.210175Horizontal arm H1 for jawØ102 / 120 mm
20.210217Horizontal arm H1 for jawØ76 mm
H2 - HORIZONTAL ARM
20.210176Horizontal arm H2 for jawØ102 / 120 mm
20.210218Horizontal arm H2 for jawØ76 mm
V1 - VERTICAL ARM
20.210177Vertical arm V1 for jawØ102 / 120 mm
20.210219Vertical arm V1 for jawØ76 mm
V2 - VERTICAL ARM
20.210145Vertical arm V2 for jawØ102 / 120 mm
20.210246Vertical arm V2 for jawØ76 mm

Pole hooking system

CodeDescriptionSizes
20.210172Pole hooking system Ø120 mm
20.210173Pole hooking system Ø102 mm
20.210174Pole hooking system Ø76 mm

Spacer

CodeDescriptionSizes
20.210209Flat Evo spacerØ120 / 102 mm
20.210210Flat Evo spacerØ76 mm
20.210211Round Evo spacer Ø120 / 102 mm
20.210212Round Evo spacer Ø76 mm
CodeDescriptionSizes
20.210213Block spacerØ120 / 102 mm
20.210214Block spacerØ76 mm
20.210215Phaze spacer Ø120 / 102 mm
20.210216Phaze spacer Ø76 mm
